Treedix Oscilloscope DIY Kit WAVE2 2-Channel Portable Digital Storage Oscilloscope Dual-Channel Handheld 2.4 inch TFT LCD Touch Screen Digital Oscilloscope Kit

<h2>Product Description<br><br><br></h2> <h3>Specification <br><br><br></h3> <p>Y-X mode available <br><br><br></p> <p>Built-in 2-channel DDS function generator <br><br><br></p> <p>Number of Channel: 2 <br><br><br></p> <p>Analog Bandwidth: DC – 200KHz <br><br><br></p> <p>Sensitivity: 5mV/Div - 20V/Div (with x1 probe) <br><br><br></p> <p>Resolution: 12-bit <br><br><br></p> <p>Input Impedance: 1M ohm / 25pF <br><br><br></p> <p>Maximum Input Voltage: 50Vpk <br><br><br></p> <p>Coupling: DC, AC <br><br><br></p> <p>Max Real-time Sampling Rate: 1Msps (per channel) <br><br><br></p> <p>Timebase: 10us/Div - 500s/Div <br><br><br></p> <p>Record Length: 1024 points <br><br><br></p> <p>Trigger Modes: Auto, Normal, Single <br><br><br></p> <p>Trigger Types: Rising/falling edge <br><br><br></p> <p><br><br><br></p> <h3>Highlights of WAVE2 <br><br><br></h3> <p>Bandwidth: 0 – 200KHz per channel <br><br><br></p> <p>Sensitivity range: 5mV/DIV – 20V/DIV (using x1 probe) <br><br><br></p> <p>Time Base range 10us/DIV – 500s/DIV <br><br><br></p> <p>Function Generator Capability: Built-in 0 – 20KHz (sine) dual channel DDS function generator <br><br><br></p> <p>Display Resolution: 320 x 240 Color display <br><br><br></p> <p>Display Size: 2.4″ <br><br><br></p> <p>Touch Display Capability: Yes <br><br><br></p> <p>About the Battery <br><br><br></p> <p>Please note the battery is not included with the WAVE2 DIY kit, however the kit does come with battery wires with matching header. please source batteries smaller or equal to the following sizes: <br><br><br></p> <p>L x W x H = 62mm x 40mm x 5mm; or <br><br><br></p> <p>L x W x H = 68mm x 31mm x 5mm <br><br><br></p> <p>Recommended battery size: <br><br><br></p> <p>L x W x H = 59mm x 37mm x 5mm / 1200mAh (usually specified as 503759 1200mAh) <br><br><br></p> <p><br><br><br></p> <h4>X-Y Channel Display <br><br><br></h4> <p>WAVE2 is a dual channel oscilloscope that can display the relationship between two signals, such as X-Y graphs, Lissajous graphs, etc. <br><br><br></p> <p></p> <h4>Color Touch Screen <br><br><br></h4> <p>WAVE2 adopts 2.4-inch TFT color touch screen, which is more convenient for carrying out work <br><br><br></p> <p></p> <h4>Widely Application <br><br><br></h4> <ol> <li>used for electronic DIY learning and electronic teaching training and competitions, very suitable for electronic DIY enthusiasts.<br><br><br></li> <li>It can also be used for audio equipment and circuits, electronic toys and remote control models, and overhaul of automotive electronic circuits<br><br><br></li> </ol> <p><br><br><i></i>Read more <br><br><br></p>

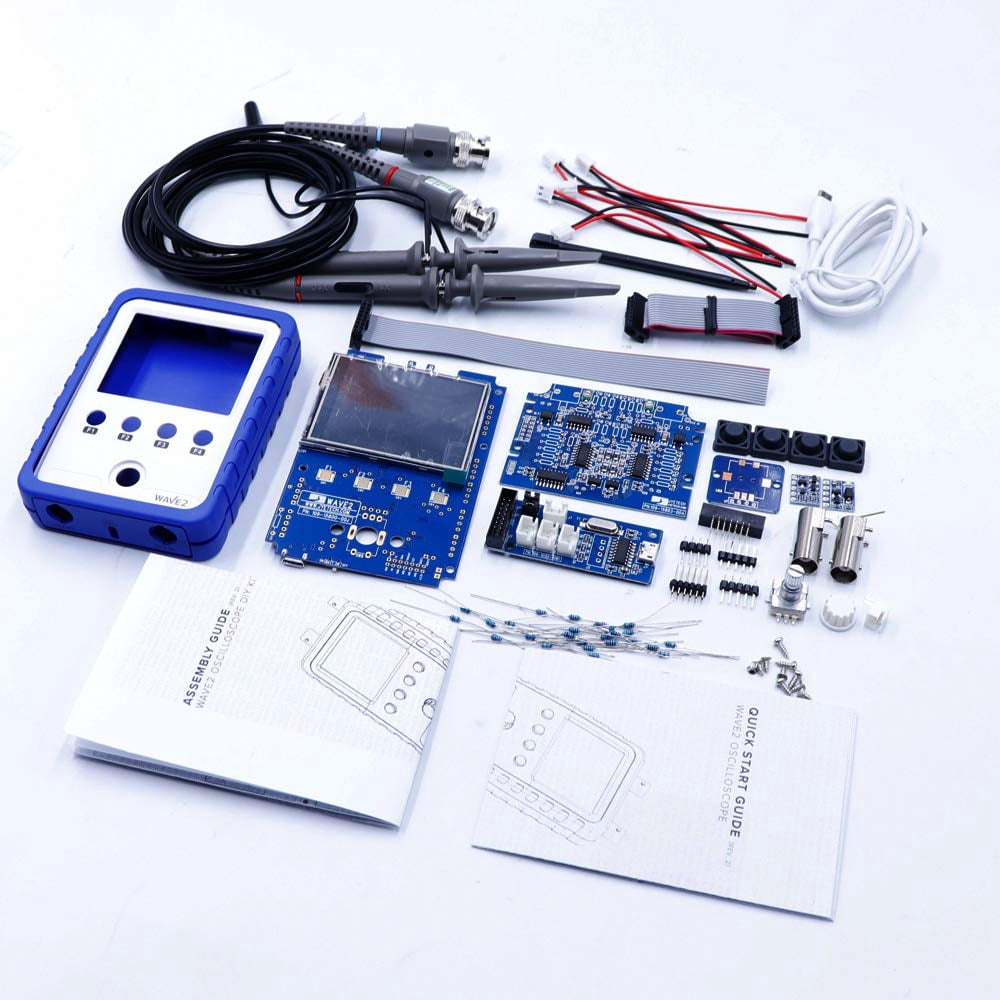

• 【Dual-channel oscilloscope DIY kit】This product is the latest dual-channel handheld touch screen digital oscilloscope on the market, it has dual-channel, high sensitivity, can be controlled through the serial port, built-in signal generator, PC upload data, USB or battery charging Features
• 【Color touch screen】 Adopt 2.4 inch TFT color touch screen, which is more convenient to carry and work. The products have passed CE certification and are of reliable quality.

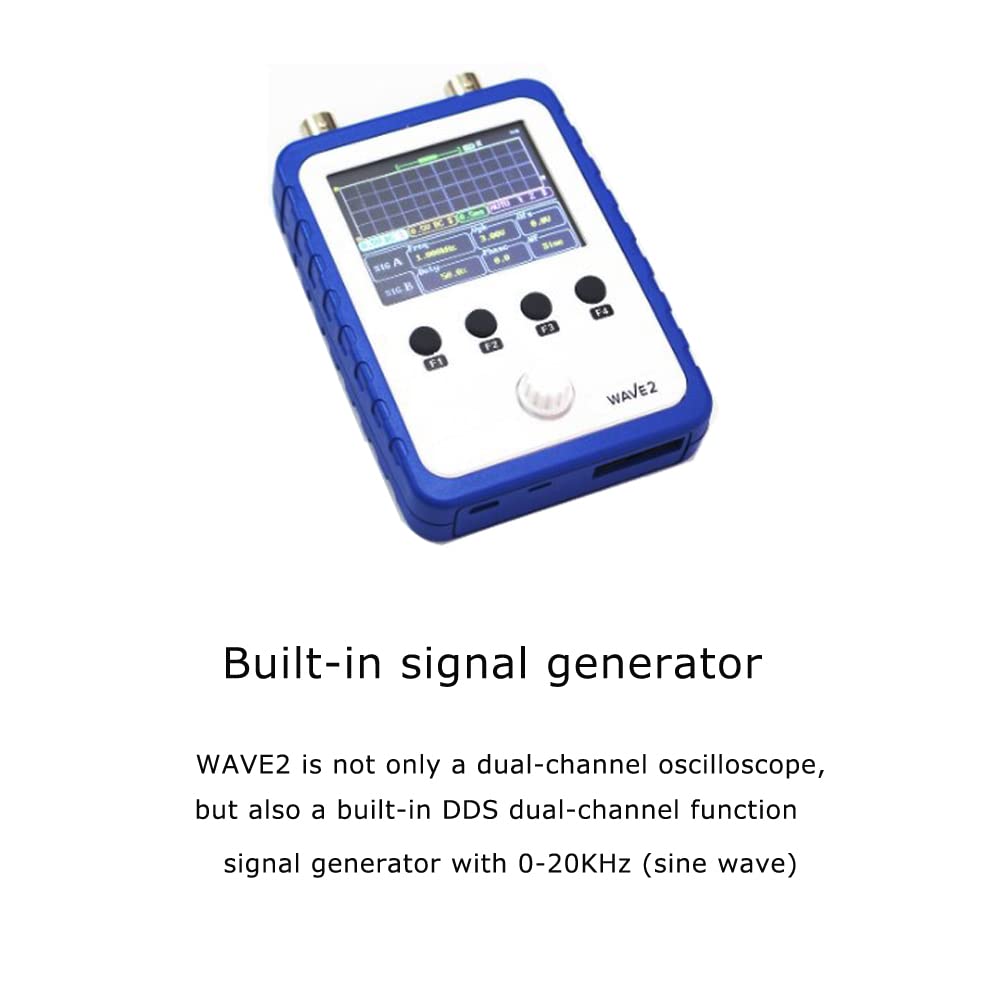

• 【Built-in signal generator】 In addition to a dual-channel oscilloscope, this product also has a built-in 0-20KHz (sine wave) DDS dual-channel function signal generator. Only advanced oscilloscopes provide built-in function generator and X-Y drawing functions.

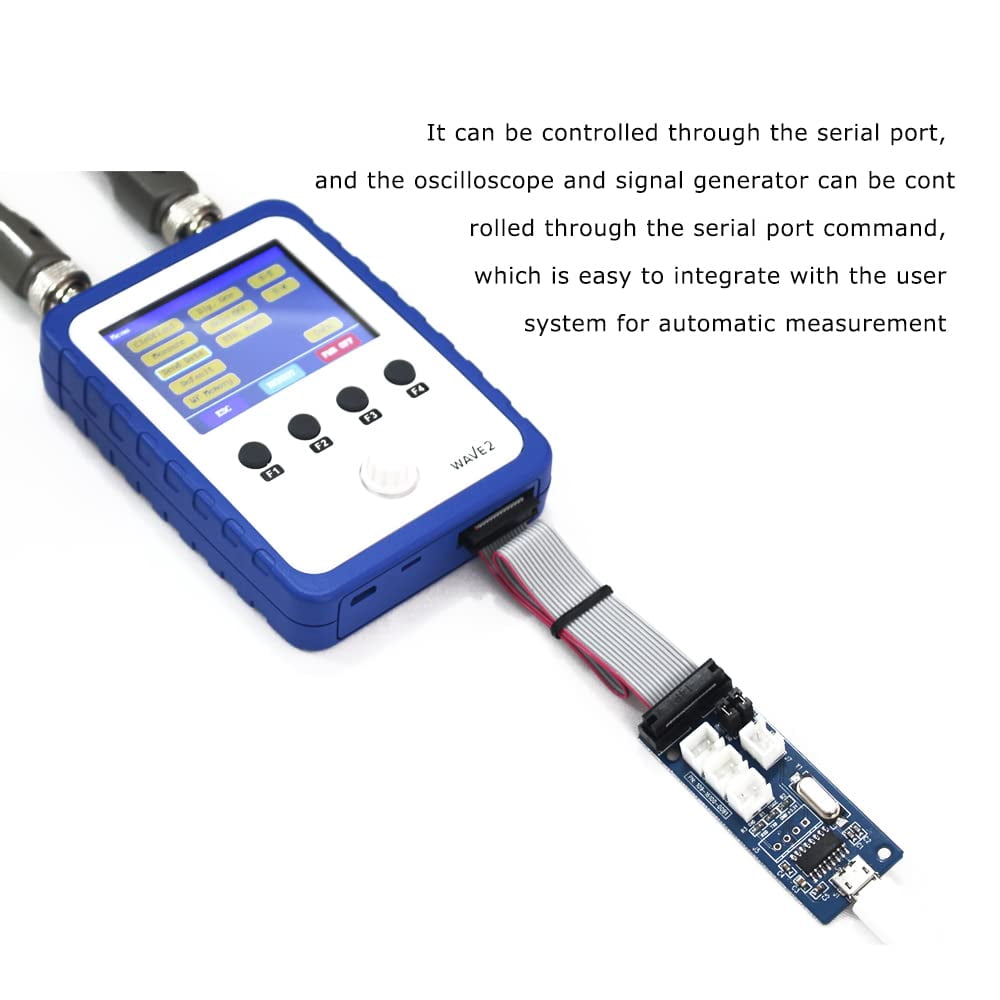

• 【Controlled via serial port】 The oscilloscope and signal generator can be controlled via serial commands, which facilitates integration with the user system for automatic measurement.

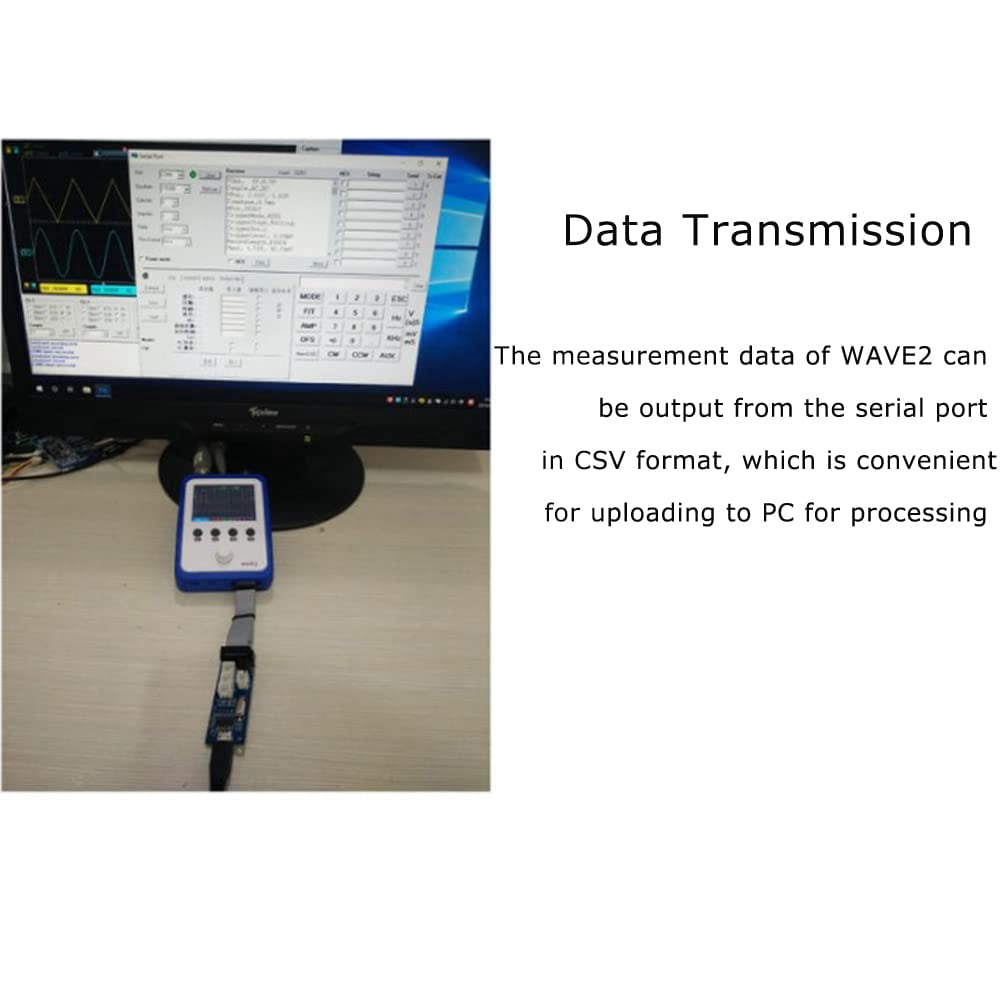

• 【Data transmission】 The measurement data can be output from the serial port in CSV format, which is convenient to upload to the PC for processing; it adopts USB/battery power supply methods, and the product package has instructions
